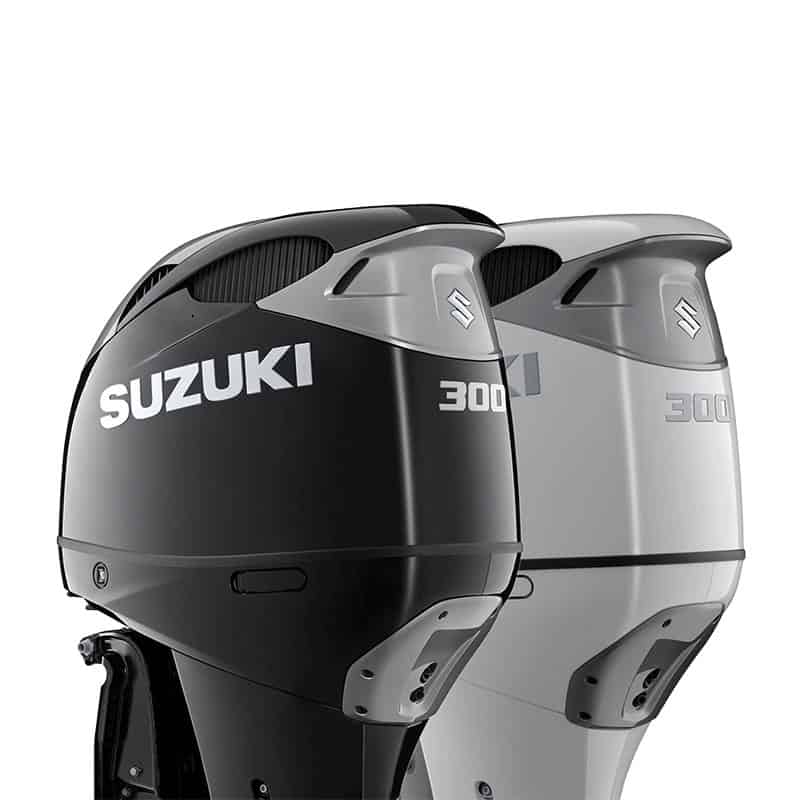

The DF300BTX5 combines strong 300 HP output with a 25” shaft, ideal for boats with deeper transoms. Its V6 design ensures smooth, quiet operation, while power trim and tilt allow for responsive handling on the water. The Nebular Black finish adds a sleek, rugged look, making this motor a trusted choice for offshore trips and heavy-duty use.
| Model | DF300BTX5 |
| Make | Suzuki |
| Recommended Transom Height (Inches) | S: 25 |
| Engine Type | DOHC 24-Valve |
| Fuel Delivery System | Multi Point Sequential Electronic Fuel Dual Injection with Lean Burn and Oxygen Sensor |
| No. Of Cylinders | V6 |
| Piston Displacement Inches (CC) | 267.9 (4390) |
| Bore X Stroke Inches (MM) | 3.74 x 3.82 (98 x 97) |
| Maximum Output HP | 300 |
| Choke | N/A - Suzuki EFI |
| Ignition System | Solid State Direct Ignition |
| Alternator | Electric 12V 54A |
| Trim Position | Power Trim and Tilt |
| Gear Ratio | 2.29:1 |
| Operating Range (RPM) | 5700 - 6300 |
| Shaft Length | S: 25 |
| Weight (lbs) | 727 |
| Controls | Next-Generation SPC 2.0 Models |
| Trim & Tilt | Power Trim & Tilt |
| Standard Propeller | Contra-Rotating Propellers |
