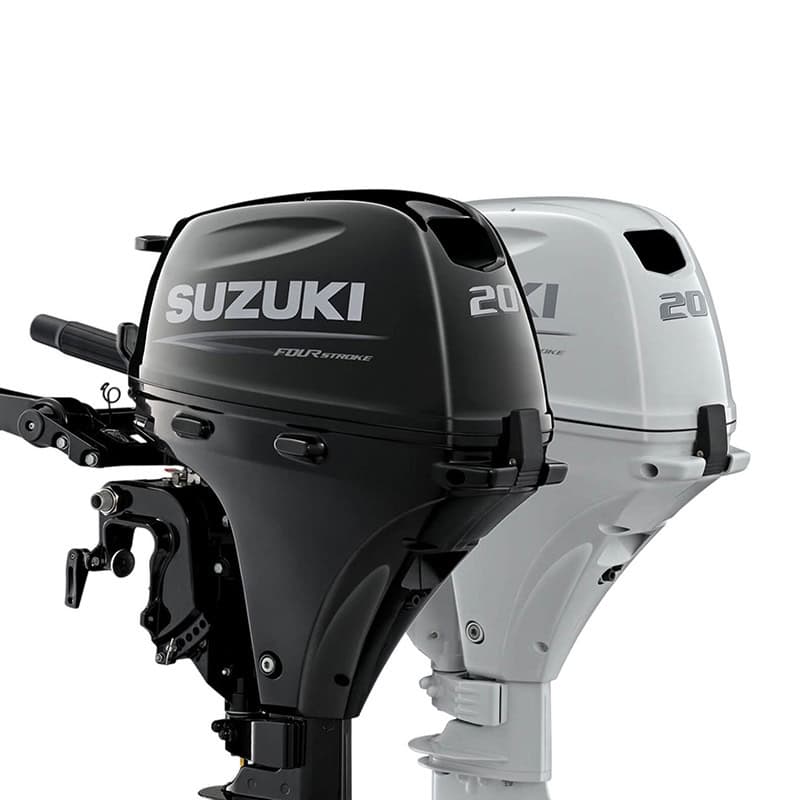

Built for boats with taller transoms, the DF20ATL5 features a longer 20” shaft and electric start for easy operation. Its 20 HP output gives smaller boats the boost they need while maintaining smooth handling and steady performance. Suzuki’s 4-stroke technology keeps emissions low and efficiency high. Whether you are fishing or exploring, this motor is ready for the job.
| Model | DF20ATL5 |
| Make | Suzuki |
| Recommended Transom Height (Inches) | S: 20 |
| Engine Type | SOHC 4-Valve |
| Fuel Delivery System | Electronic Fuel Injection with Lean Burn |
| Piston Displacement Inches (CC) | 20.0 (327) |
| Bore X Stroke Inches (MM) | 2.38 x 2.24 (60.4 x 57) |
| Maximum Output HP | 20 |
| Choke | N/A - Suzuki EFI |
| Ignition System | Digital CDI |
| Alternator | Manual 12V 6A / Electric 12V 12A |
| Trim Position | 5 Tilt Pin Positions and 2 Shallow Water Drive Settings - Option Power Tilt |
| Gear Ratio | 2.08:1 |
| Operating Range (RPM) | 5000 - 6000 |
| Shaft Length | S: 20 |
| Weight (lbs) | 120 |
| Controls | Remote Mechanical |
| Trim & Tilt | Power Tilt |
| Fuel Tank | 12L |
| Prop | Y |
| Standard Propeller | Prop 3x9-1/4x9 |
